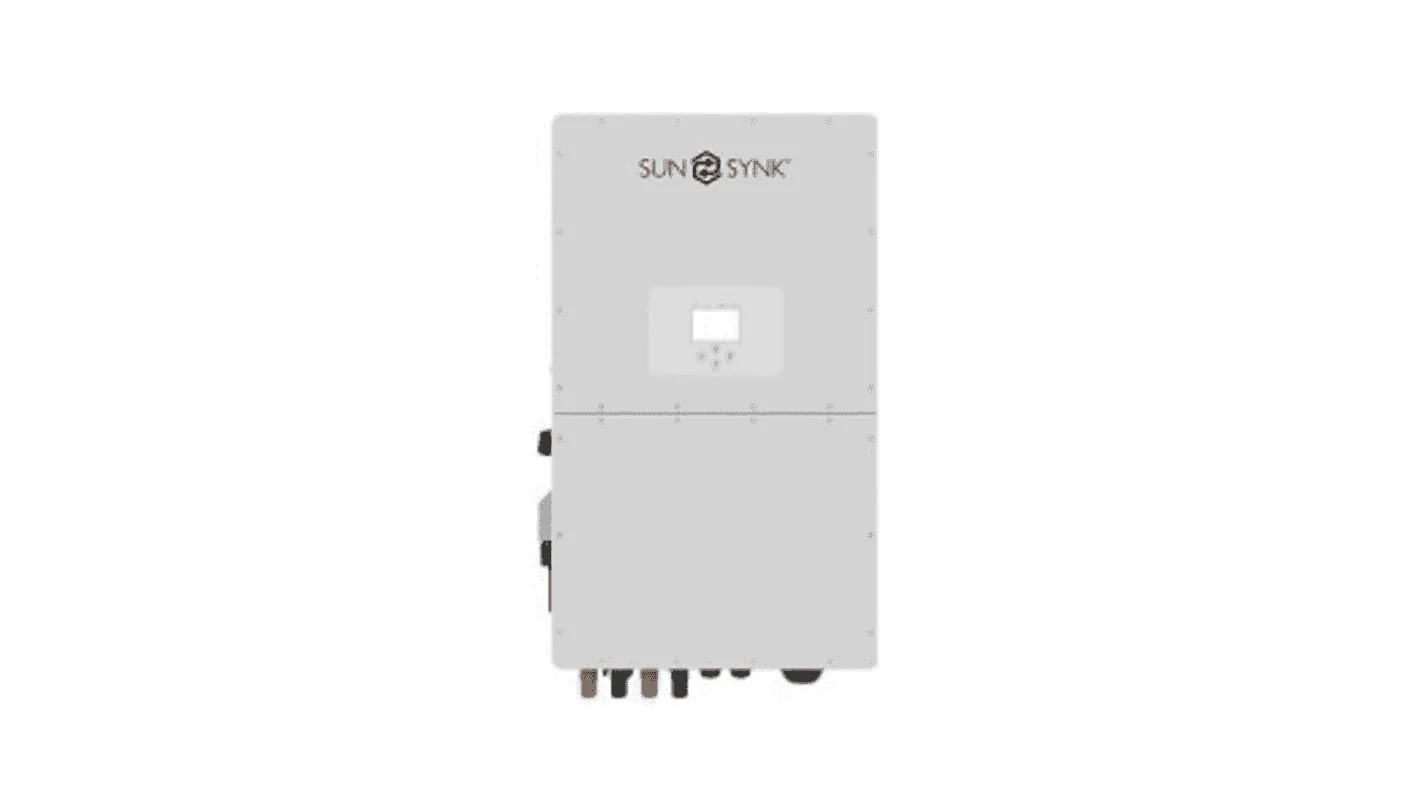

Sunsynk 50kW, HV Three Phase Hybrid Inverter

#2: SUN-50.0-3PH

*Collections are not permitted due to health & safety regulations*

The Sunsynk 50kW three phase high voltage hybrid Inverter is ideal for commercial and industrial properties. Remote monitoring via the Sunsynk app. Easy to install and maintain.  This inverter manages up to 65,000W and manages power flow from multiple sources such as solar, main electrical grid and generator.

Please note: This product must be installed by a qualified technician. Installations must adhere to local wiring regulations and standards or it will invalidate the warranty.

Features

• 4 MMPT Trackers allowing for flexible PV configurations
• Allows DC oversizing up to 30% more than the rated AC power
• Unit can be operated without batteries
• Supports WiFi remote monitoring as standard
• Type II DC/AC SPD as standard
• Overload/over-temperature/short-circuit protection

Specs

• Weight: 75kg
• Rated Power: 50,000 W
• Min PPTV Voltage: 150 V
• Max PPTV Voltage: 850 V
• DC Startup Voltage: 180 V
• DC Shutdown Voltage: 150 V
• Max Input Voltage: 1,000 V
• Max DC Power: 65,000 W
• Max AC Power 5 minutes: 50,000 W
• Surge AC Power 1 second: 55,000 W
• Max Discharge Current: 144A
• Max DC Fuses: 0
• Connector: MC4
• Included Connectors: 0
• Euro Efficiency: 97%
• Transformer: None
• MPPT Quantity: 4
• Has Integrated DC Switch: Yes

• Warranty: 5 years
